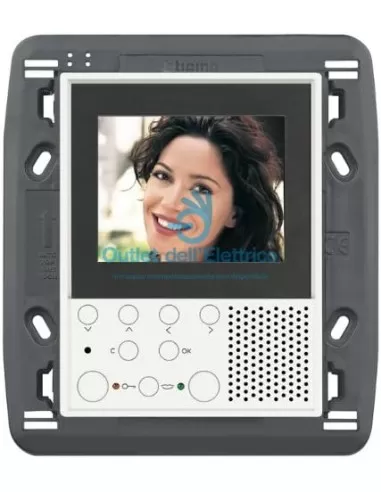

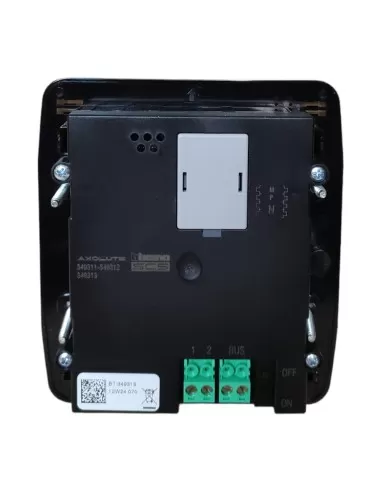

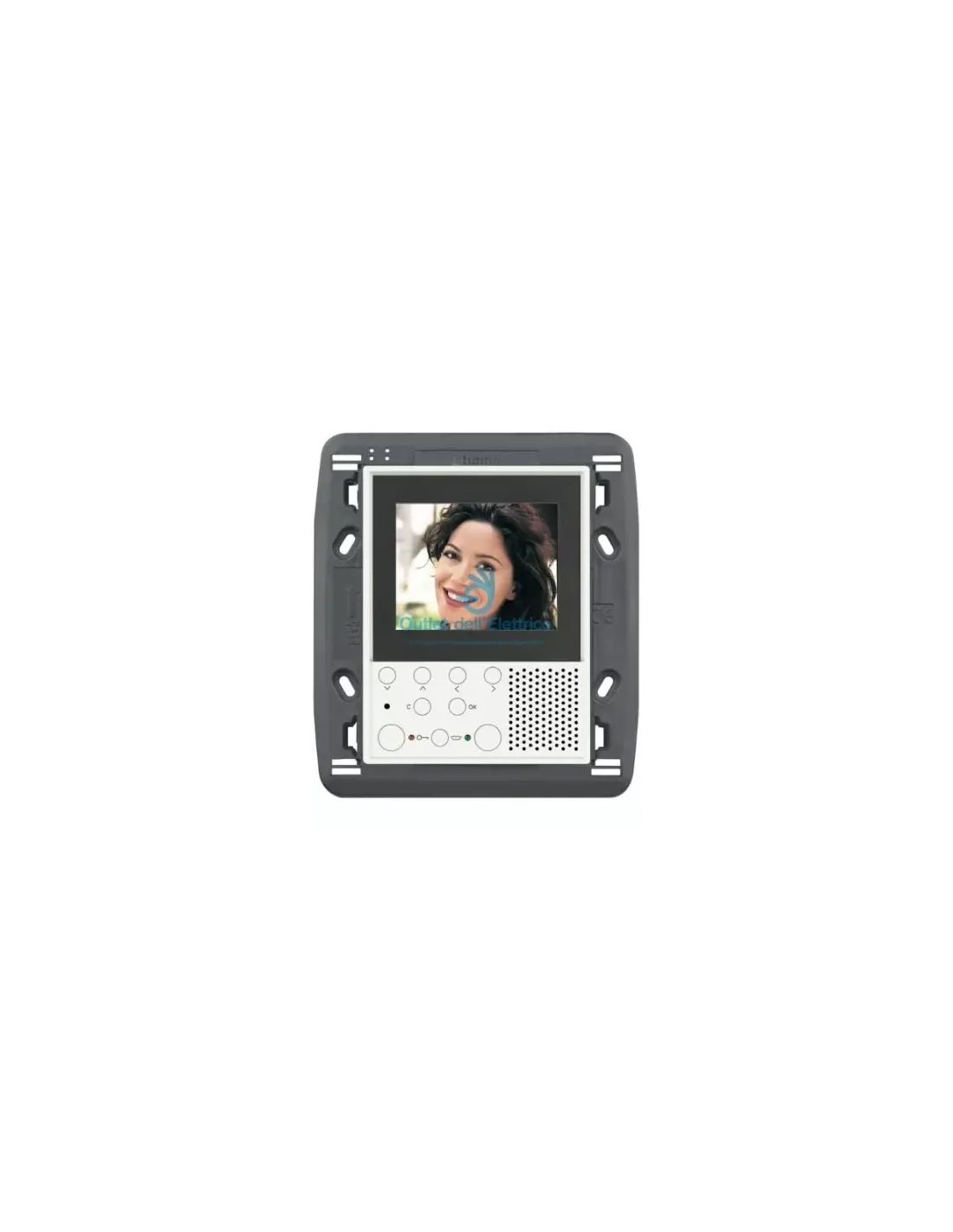

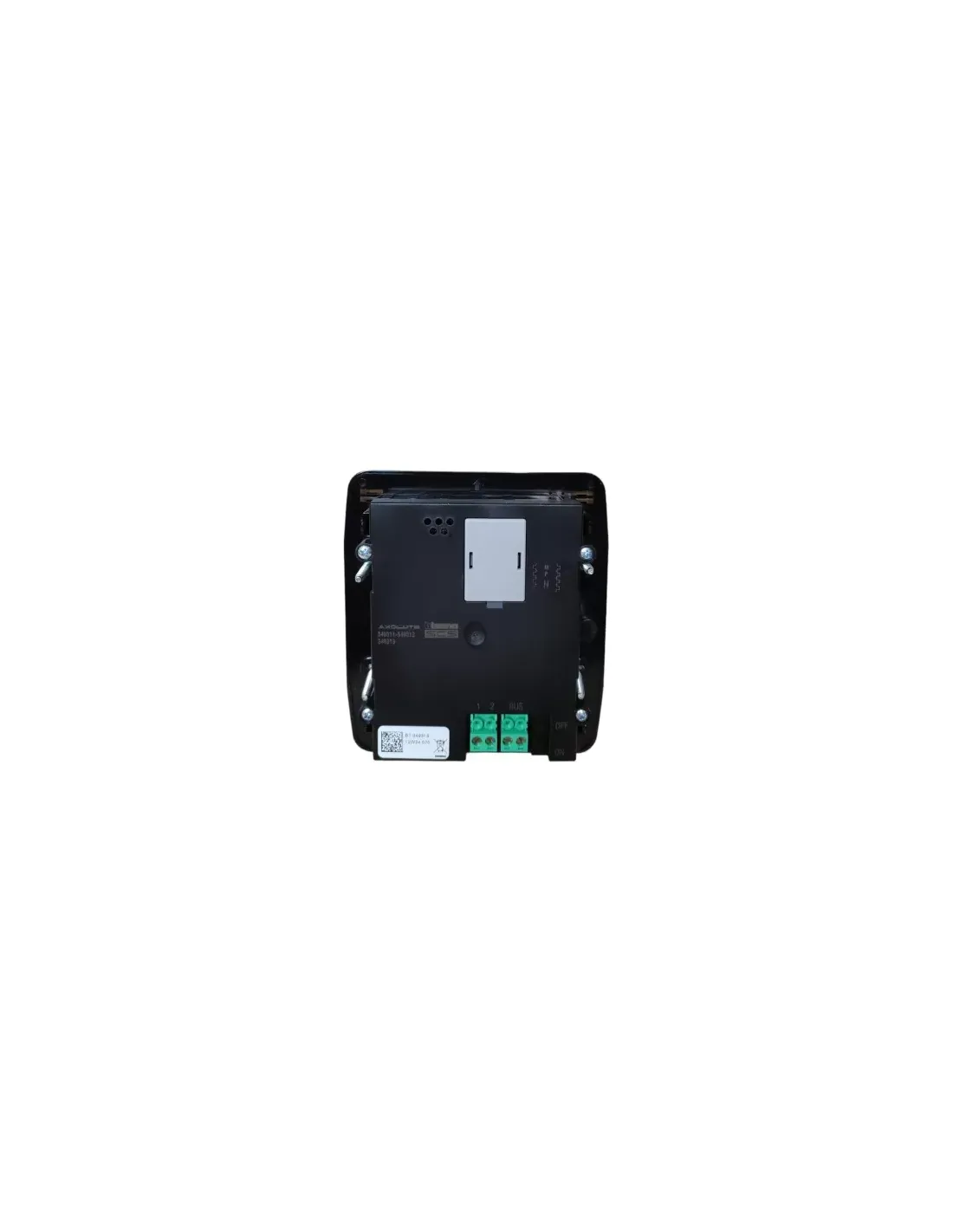

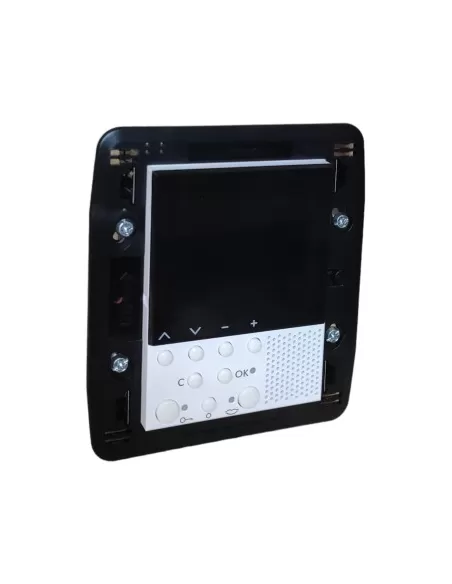

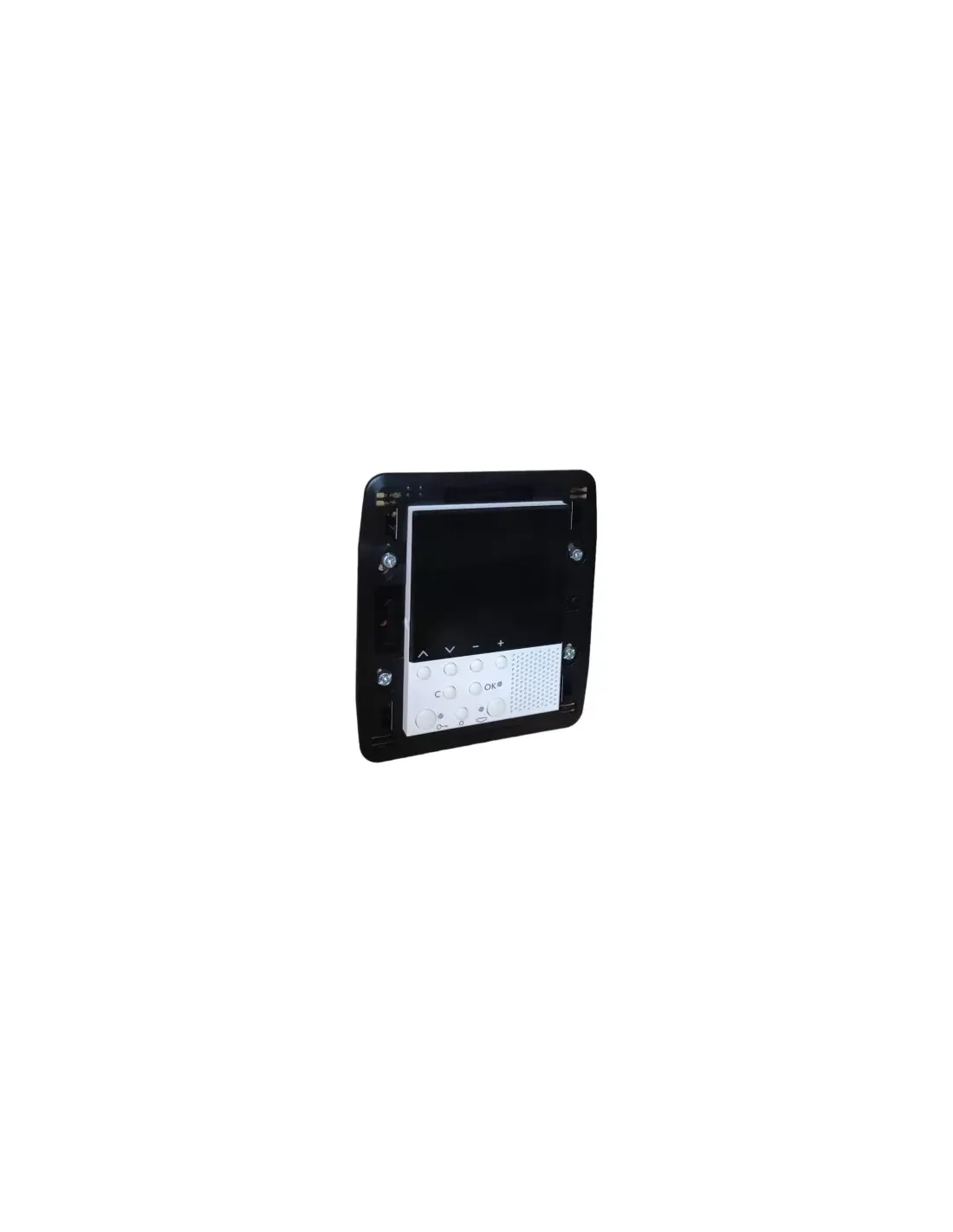

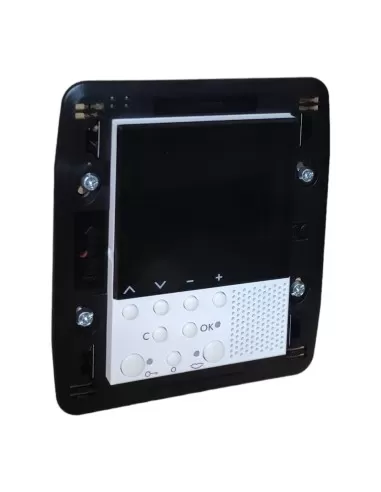

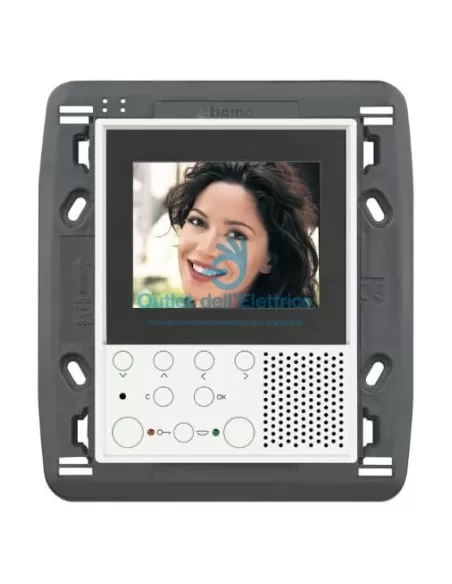

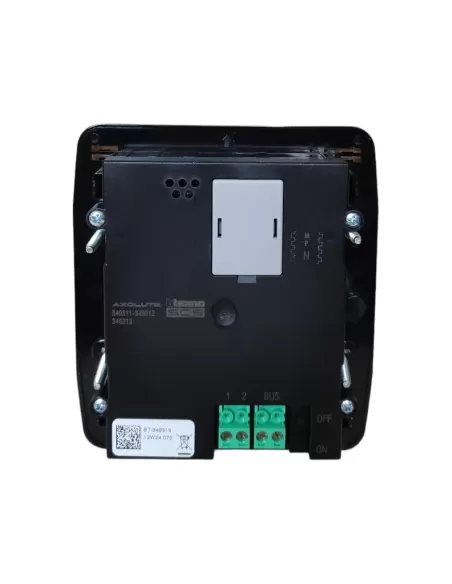

Bticino 349313 Axolute color video display with white finish

Technical description:

Article: 349313

2-WIRE hands-free video intercom for flush-mounted installation in Axolute white finish. It features a 2.5" LCD display with an OSD navigation menu with icons that can be customized via PC for managing the My HOME applications: video intercom, temperature control, sound diffusion, automation (scenarios) and intrusion detection. Keys: navigation, self-ignition, lock release and hands-free connection. LED indicators for: call exclusion, door status and hands-free connection. USB port for programming / firmware updates. Can be flush-mounted in a 506 box. To be completed with a finishing plate (all those in the Axolute series for 506E). Configurable via physical configurators or specific software.

Technical data:

- Power supply from SCS BUS: 18 – 27 Vdc

- Standby current consumption: 10 mA

- Maximum current consumption in operation: 320 mA

- Operating temperature: 5 - 40°C

- Type: 2 Wires
