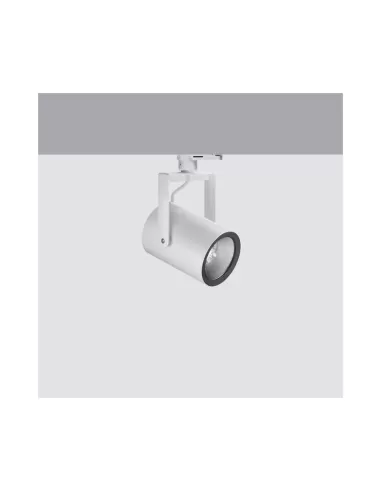

Iguzzini 3 mb35 701 0 mb35 front light picc with 1 led warm white flood c

Technical description: Adjustable indoor spotlight with adapter for installation on mains voltage tracks. The fixture is made of die-cast aluminum. The spotlight's dual adjustability allows for 360° rotation around the vertical axis and 90° tilt on the horizontal plane. Mechanical aiming locks for both rotation around the vertical axis and with respect to the horizontal plane. Built-in electronic power supply.

The device is complete with a flood optic LED group in warm white colour tones.

Installation on electrified track White colour (01)

Three-phase track assembly

Wiring of electronic components contained inside the appliance

Technical data

lm system: 1678

System W: 15.5

lm source: 2100

Source W: 14

Luminous efficacy (lm/W,

system data):

108.4

lm in emergent mode: -

Total flow emitted at 90°

or higher [Lm] :

0

Light Output Ratio ( LOR )

[%] :

80

Opening angle [°] : 42°

Color rendering index: 80

Color temperature [K] : 3000

MacAdam Pass: 2

LED 1 life: > 50,000h - L80 - B10 (Ta 25°C)

Loss of power

[W] :

1.5

Lamp code: LED

Number of lamps per

optical compartment:

1

ZVEI Code: LED

Number of optical compartments: 1
