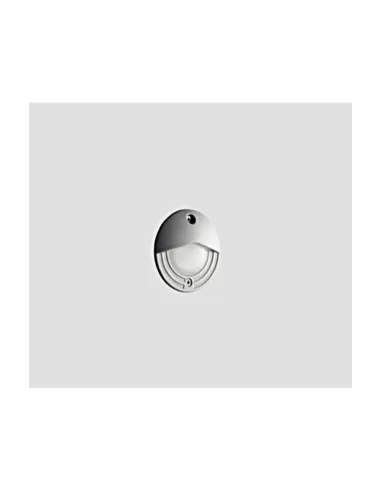

Simes s.3445.14 Microled recessed with BF LED 1.5W 24V stainless steel

TYPE

Walkable device for ground installation.

Depth 75mm.

Degree of protection IP 67

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium "Copper Free" EN AB-44100

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

2 mm thick front finishing ring made of AISI stainless steel

316L with a high molybdenum content of 2.5-3%.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

Polycarbonate diffuser.

Light source, with fixed lamp position.

Yield --

-LOW SURFACE TEMPERATURE

Glass temperature -- (Ta 25°C)

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Supplied with polypropylene formwork prepared for cable entry

which allows you to:

1) perform easy wiring;

2) accommodate the IP67 quick connector;

3) Easily perform appliance removal for maintenance.

-WIRING

The LED is mounted on the electrical circuit and connected to an electrical cable.

It is then inserted into two technopolymer shells sealed by means of high-frequency waves.

ultrasound.

Piece of H07RN-F type power cable closed and sealed with

two-component epoxy resin and internally wired.

The M20 quick connector (Ø 6÷12 mm) IP67 is supplied as standard for

single through connection, to be housed inside the formwork.

Also supplied with clips for installation in walls, false ceilings and floors

floating.

Insulation class: CLASS III

Available colors: ALUMINUM GREY (code 14)

Weight: 0.37 kg

Glow Wire Test: 960°C

Fixtures supplied complete with LED circuit with emission class

1 (CEI EN 60825-1:2003-02)

S.3445

ACCESSORIES FOR RECESSED MICROLED

S.3400

24V IP20 LED POWER SUPPLY

10W 24V CC POWER SUPPLY

Input: 230V AC

Output: 24V DC

Dimensions: 120 x 35 x 20 mm.

S.3401

BOX POWER SUPPLY FOR 24V LED

BOX IP55 10W 24V CC (Electronic power supply

S.3400 included)

Dimensions: 200 x 200 x 90 mm.

Inlet: 4 PG11 cable glands

Output: 6 PG11 cable glands

IP55 CLASS II
