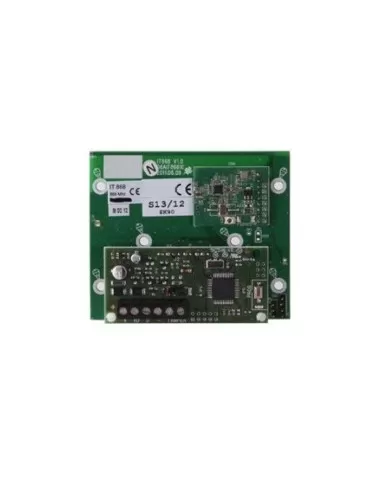

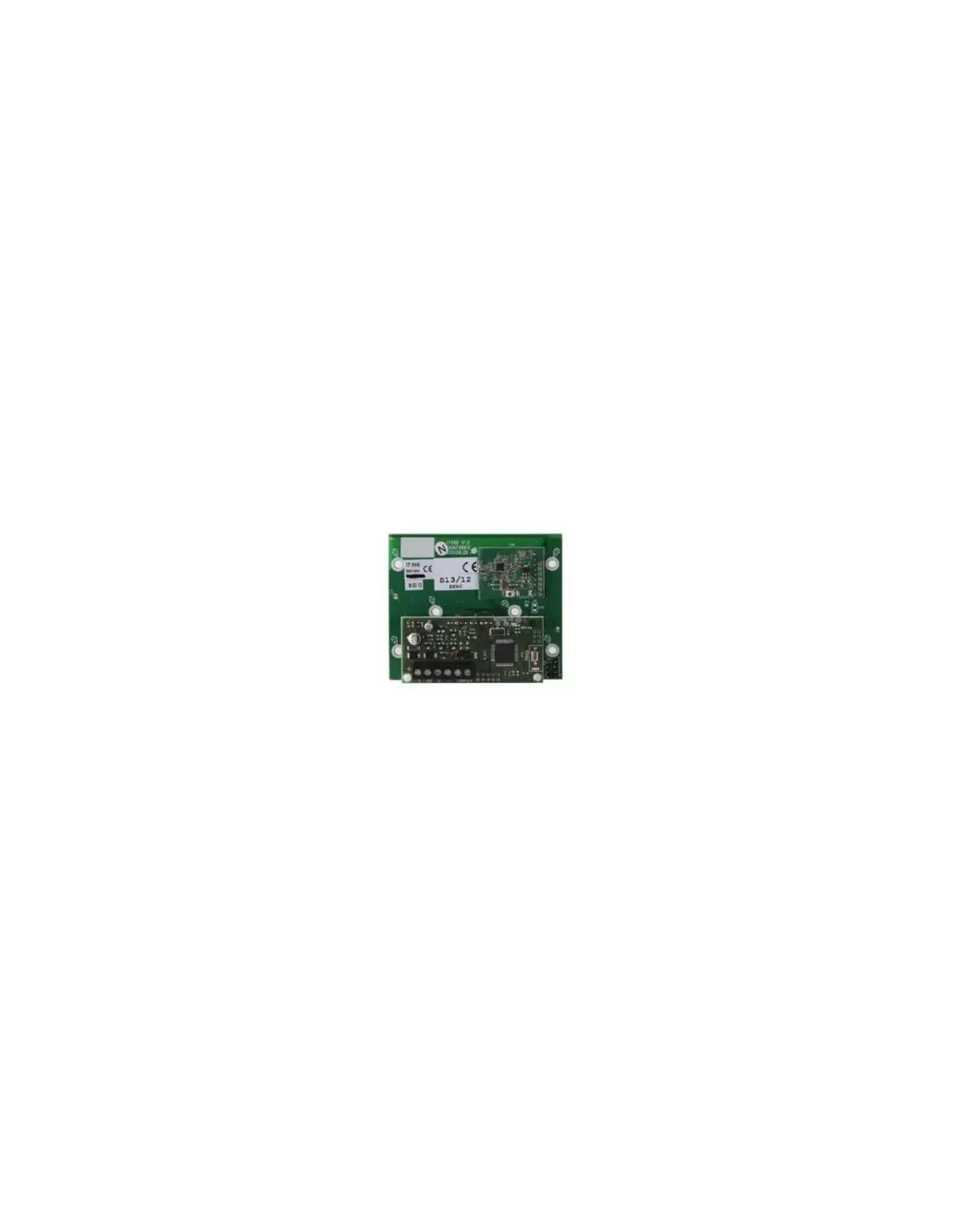

Urmet 1067/004 Web server interface

The 1067/004 interface is an optional device with integrated web server function for connecting the new 1067/032A control panel to the LAN network, via an ADSL modem router.
- It allows the user, from any device with web browser accessibility (PC, Tablet, Smartphone) to access in secure mode a series of anti-intrusion functions managed by the control panel (ON/OFF activation, partial activation, exclusion of inputs, zones, verification of alarms, tampering, etc.) and to verify what is happening via the video functions of the URMET range of IP cameras (image history, sending of frames in the event of an alarm, live accessibility, etc.)
- Allows the installer, from a PC with web browser accessibility, and the FAST PRO software application (version 2.30 onwards), to remotely manage the 1067/032A control panel

Technical Features:

- Nominal supply voltage: 13.8 Vdc
- Min/max operating voltage: 9 Vdc 15 Vdc
- Rated current draw at 12 Vdc: 150 mA max (1.8 W)
- Connection port: LAN-RJ45 Speed 100Mbps
- Operating temperature: -10C +40C
- Average operating relative humidity: 75%
- Storage temperature: -20C +60C
