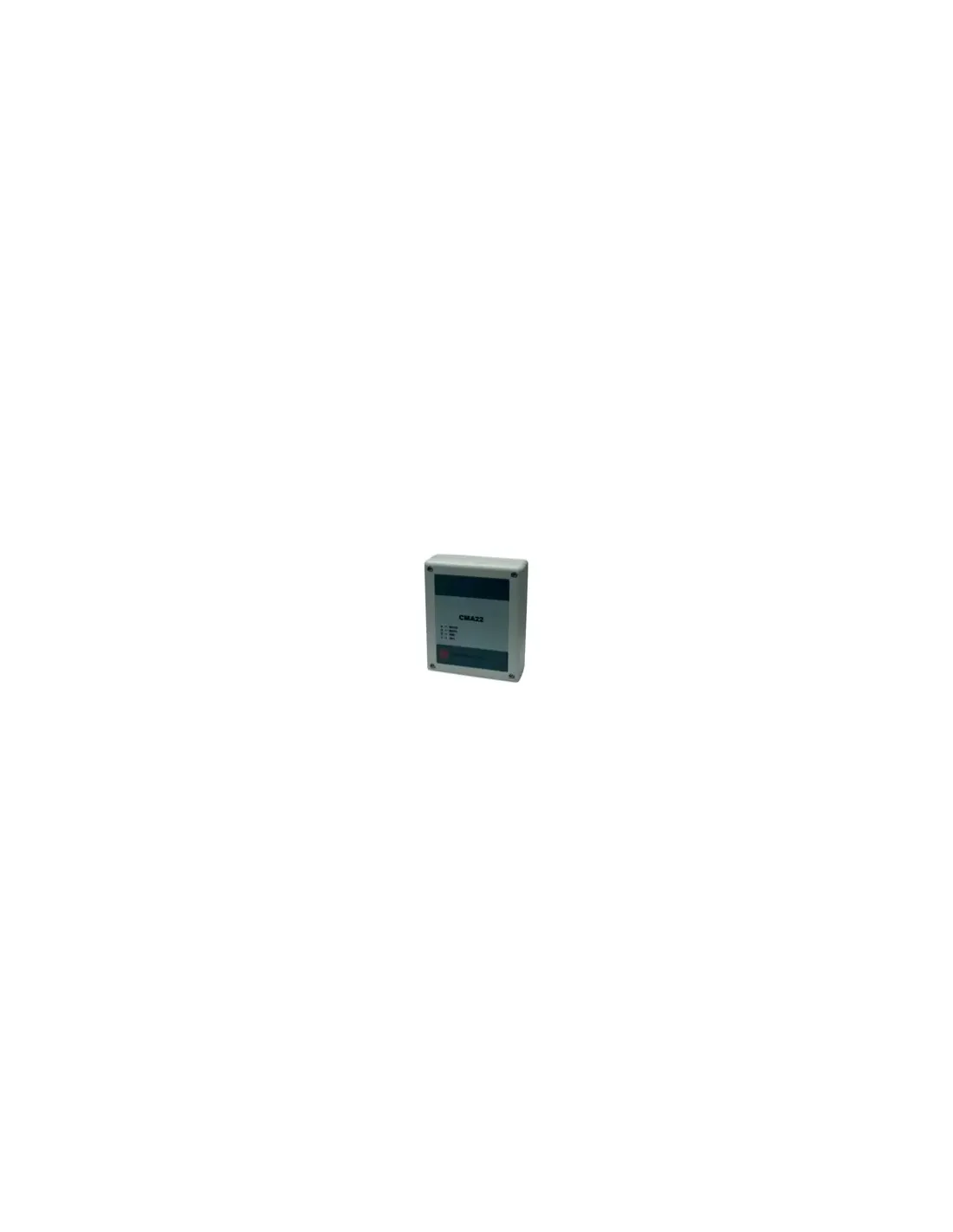

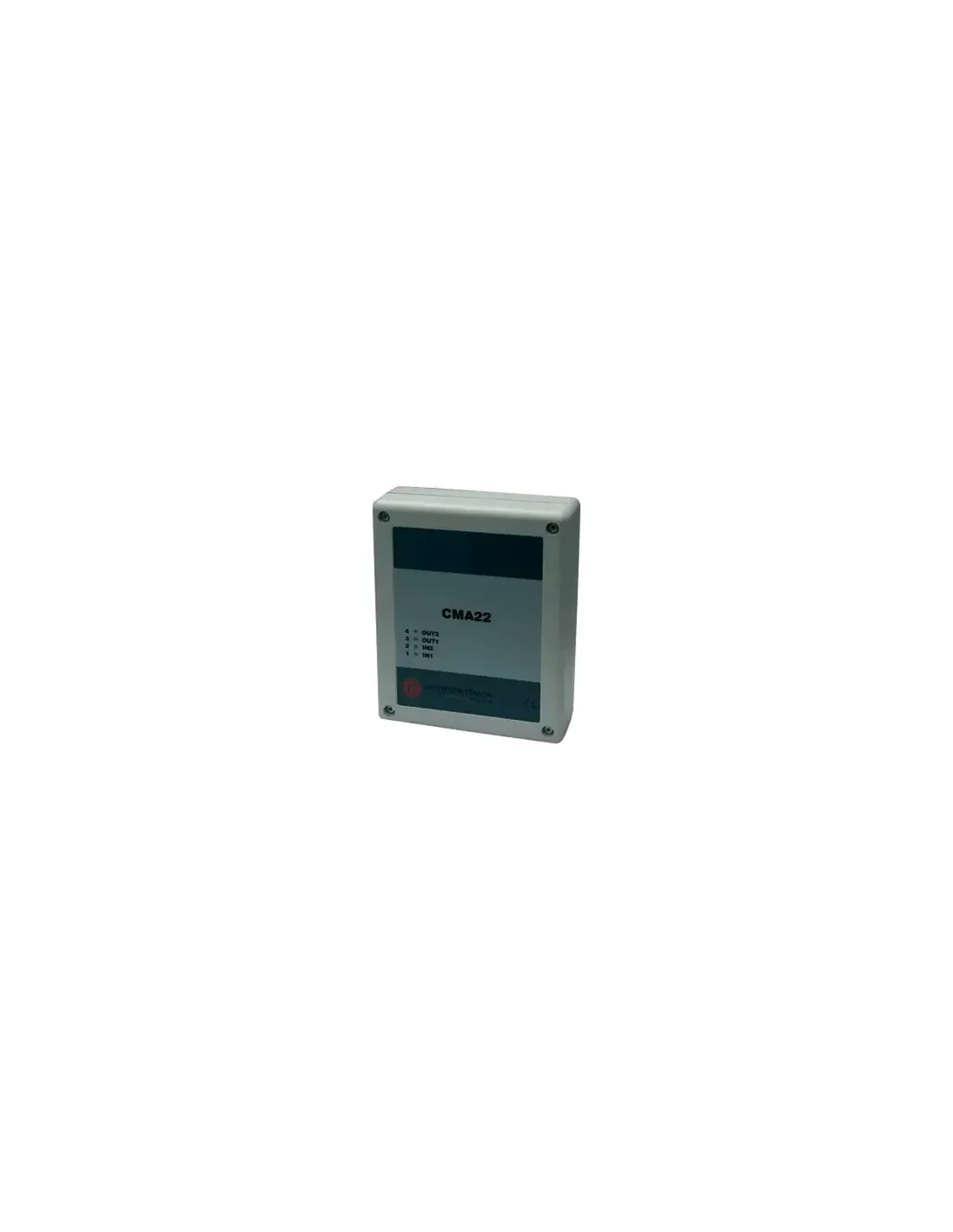

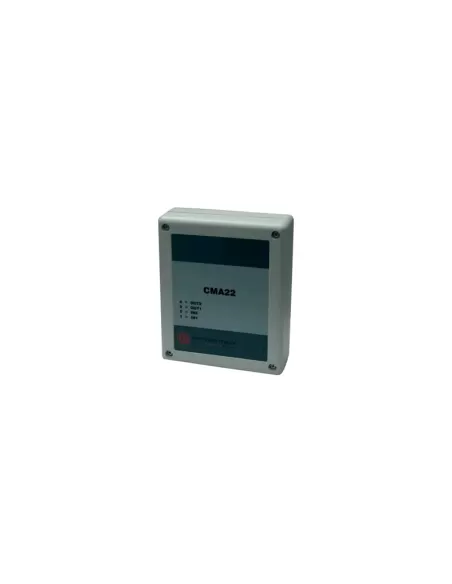

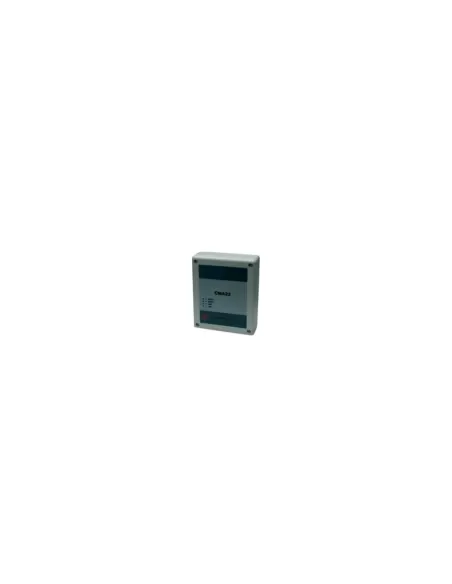

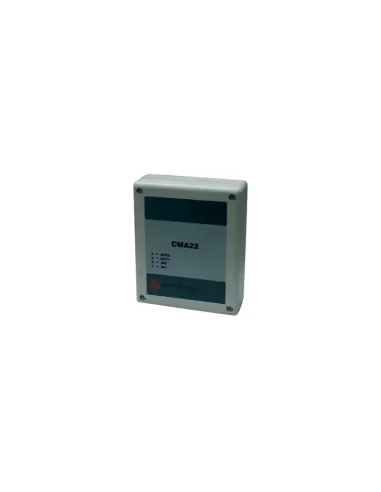

Notifier cma22 interface module 2 inputs 2 outputs

Addressable module with 2 inputs and 2 outputs The input is controlled on a monitored line The second output can be controlled either with a potential-free exchange contact, the first one only with a contact The choice of the output type is obtained by selecting two dip-switches The module, using four consecutive addresses, is addressed by means of rotary selectors with numbers from 01 to 99 It is equipped with four green and red LEDs which will give indications on the status of the module CPR certified in compliance with EN 54-18 Power supply 15-32Vdc Quiescent current of 620 microA and 860 microA with active LED Operating temperature from 0°C to 50°C Relative humidity up to 93%
