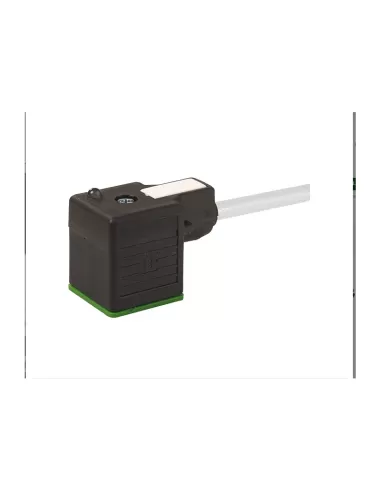

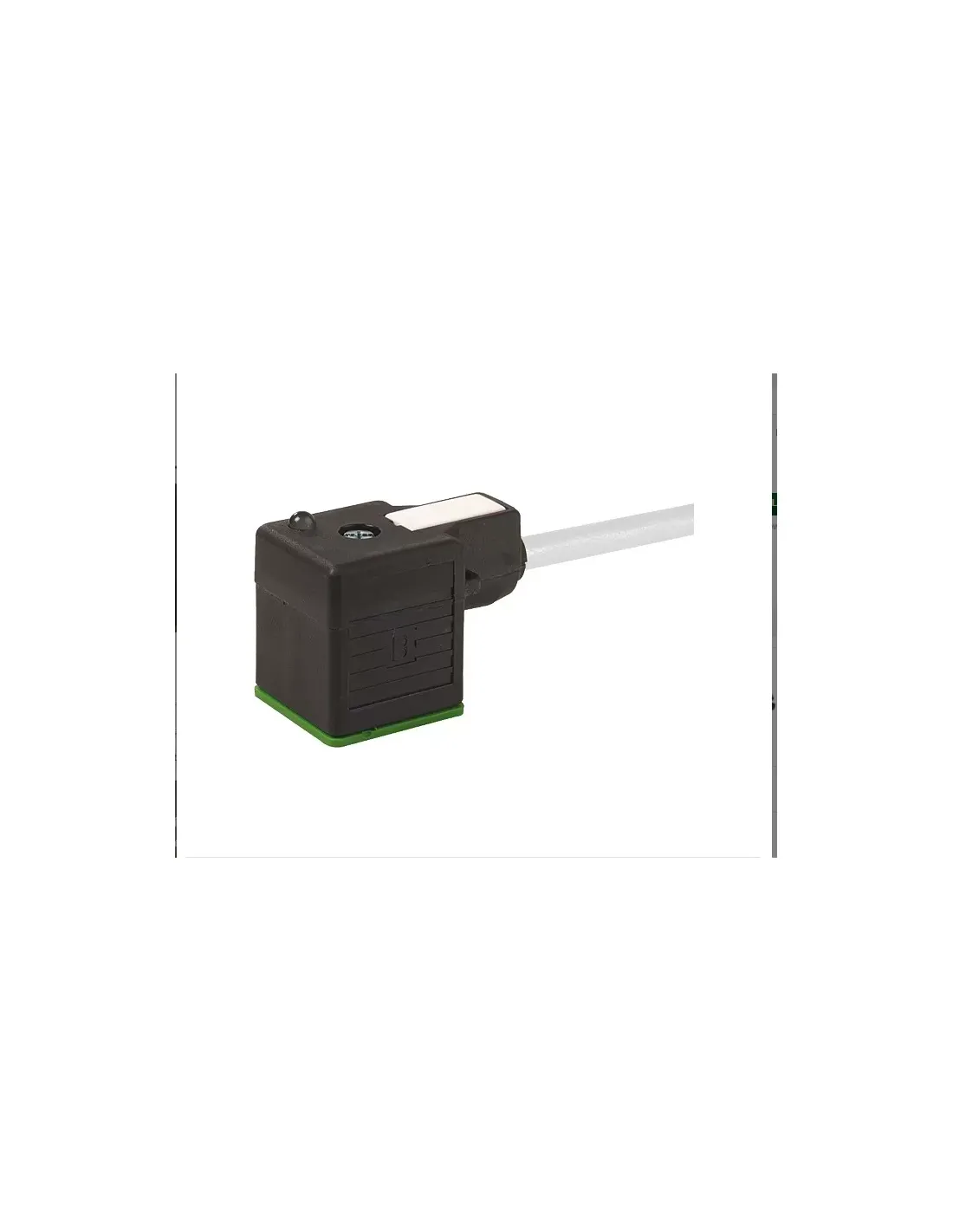

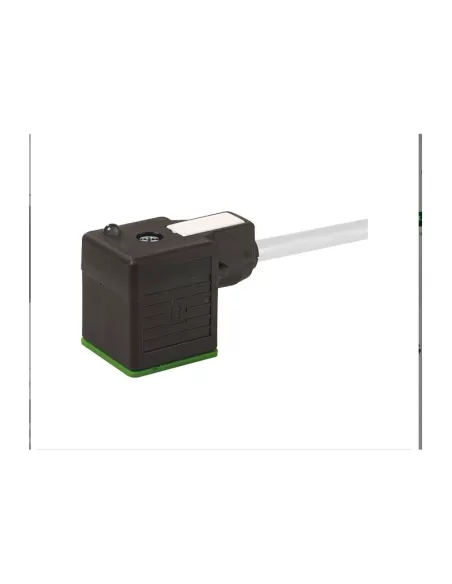

Murr elektronik 7000180212360500 msud electrov connector form a18 mm with cable

TECHNICAL DATA Operating voltage 24 V AC ±20% // DC ±25% Rated surge voltage 0 8 kV Operating current per contact max. 4 A Current consumption max. 15 mA Material group IEC 60664-1, category I Switch-off surge max. 55 V Delay time on fall-off max. 20 ms Indicator LED yellow Connector locking M3 (tightening torque 0 4 Nm) Degree of protection IP67 when plugged in and locked (EN 60529) Locking device material Steel (galvanized) Material PBT Housing Plastic, black (grey on request) Additional suppressor Zener diode GENERAL DATA Pollution degree 3 Material (seal) PUR Temperature range -25 85 °C, depending on cable quality CABLES No.//wire diameter 3× 0 75 mm² Wire insulation PP (ne num, ve-gia) Energy chain values 10 Mio Material (jacket) PUR (UL//CSA) Outer Ø 5 9 mm ±5% Bending radius (moving) 10× Outer Ø Temperature range (fixed) -40 80 °C Temperature range (moving) -25 80 °C Cable identification 236 Cable type 3 (PUR) Certifications (cable) cURus (AWM-Style 20549//10493); CE compliant Cable weight [G//m] 56.10 Material (wire) Copper wire, bare Resistance (conductor) max. 26 O//km (20 °C) Ø solid wire (conductor) 0 15 mm Structure (conductor) 42× 0 15 mm (multi-stranded strand class 6) Diameter (conductor) 3× 0 75 mm² AWG similar to AWG 18 Material (wire insulation) PP Material property (wire insulation) Free from CFCs, halogens, cadmium, silicone and lead Shore hardness (wire insulation) 70 ±5 D Ø wire incl. insulation 1 85 mm ±5% Colour//number of wires black numbered, green longitudinally striped Wire combination 3 stranded strands Shielding no Material (jacket) PUR Material property (jacket) Free from CFCs, halogens, cadmium, silicone and lead silicone and lead, matt, low adhesion, easy to process, abrasion resistant, resistant to hydrolysis and microbes Hardness (coating) 90 ±5 A Outer Ø (coating) 5 9 mm ±5% Colour (coating) grey Chemical resistance good resistance to oils, petrol and chemicals (EN 60811-404) Rated voltage 300 V AC Test voltage 2500 V AC Current carrying capacity according to DIN VDE 0298-4 Temperature range (fixed) -40 80 °C, ( 90 °C at max. 10 000 operating hours) Temperature range (mobile) -25 80 °C, ( 90 °C at max. 10 000 operating hours) Bending radius (fixed) 5× outer Ø Bending radius (mobile) 10× outer Ø Number of cycles (cable chain) max. 10 Mio (25 °C) Speed (c cable holder) max 3 m//s Acceleration (c cable holder) max 10 m//s² Torsional stress ±180°//m N of cycles max 2 Mio (25 °C) Torsional speed 35 cycles//min Colour grey
