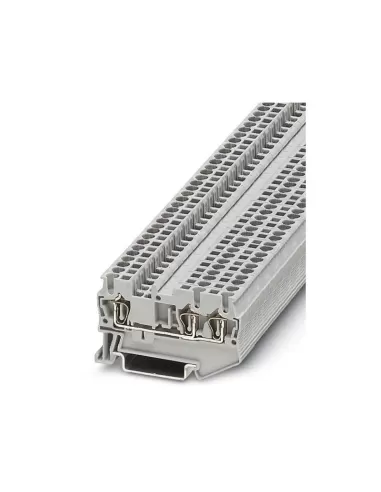

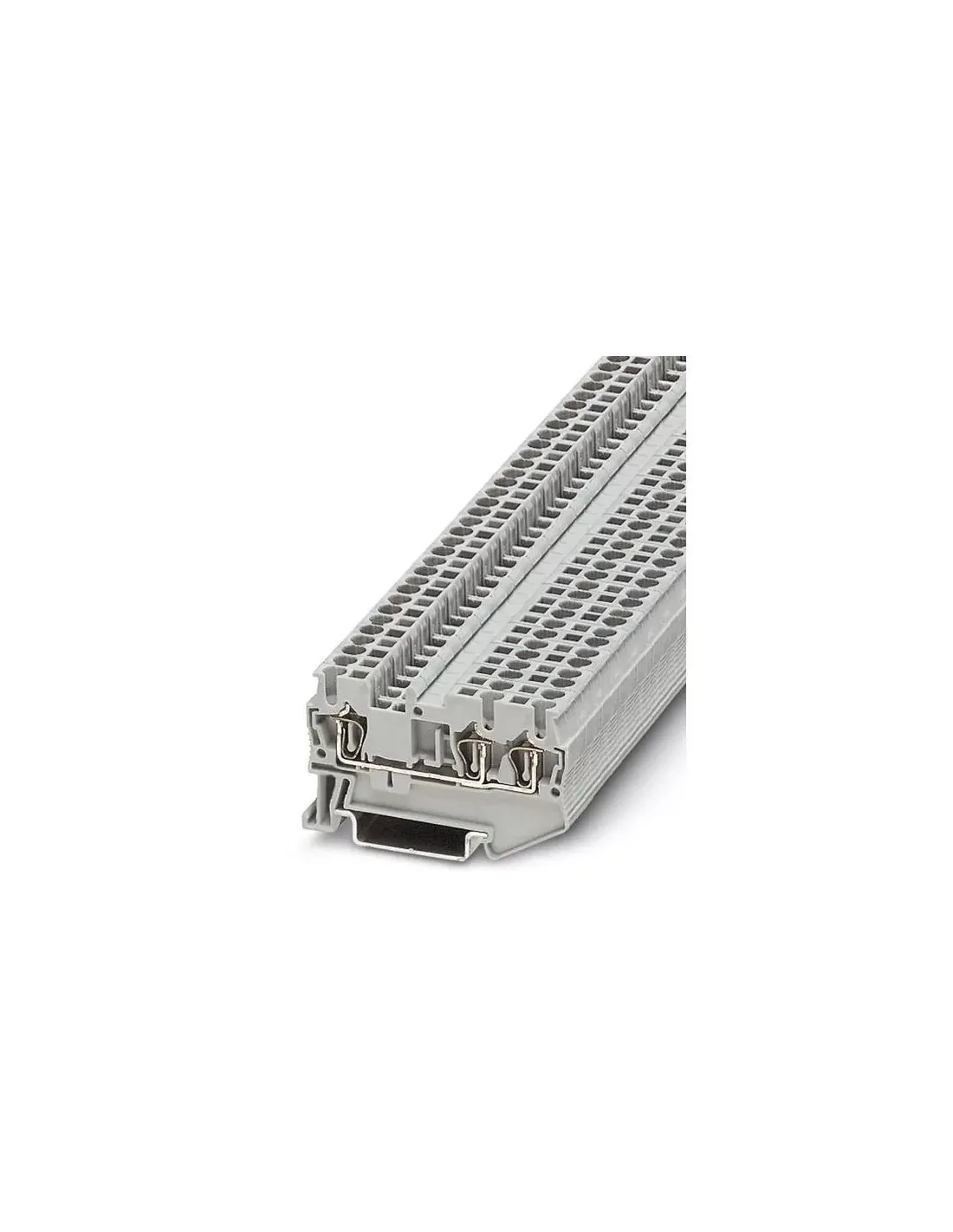

Phoenix 3031212 st 2.5 spring-loaded through terminal

Width//modular dimension: 5.2 mm Connectable conductor cross-section fine-wire without end sleeve: 0.08 ÷ 2.5 mm² Flammability class of the insulating material according to UL 94: V0 Width: 5.2 mm Connection type screw//spring//push in: Spring Number of pins: ND Insulating body material: Other Connectable conductor cross-section stranded: 0.08 ÷ 2.5 mm² Length: 48.5 mm Connectable conductor cross-section fine-wire with end sleeve: 0.14 ÷ 2.5 mm² Mounting type: Other Height for lowest mounting type: 36.5 mm Number of fixing points per level: 2 Rated voltage: 800 V Number of levels: 1 Rated current In: 24 A Electrical connection type 2: Spring connection Number of levels: 1 Connectable conductor cross-section single-wire: 0.08 ÷ 4 mm² Cross-section: 0.08 ÷ 4 mm² Electrical connection type 1: Spring connection Fuse holder: No Color: Gray
