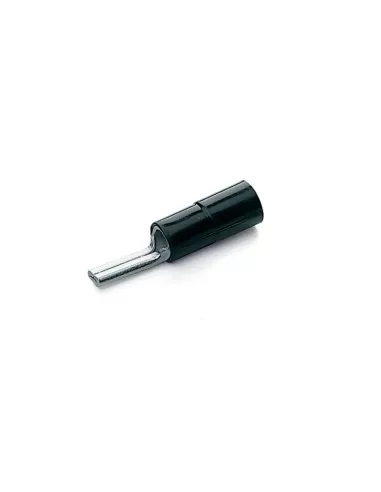

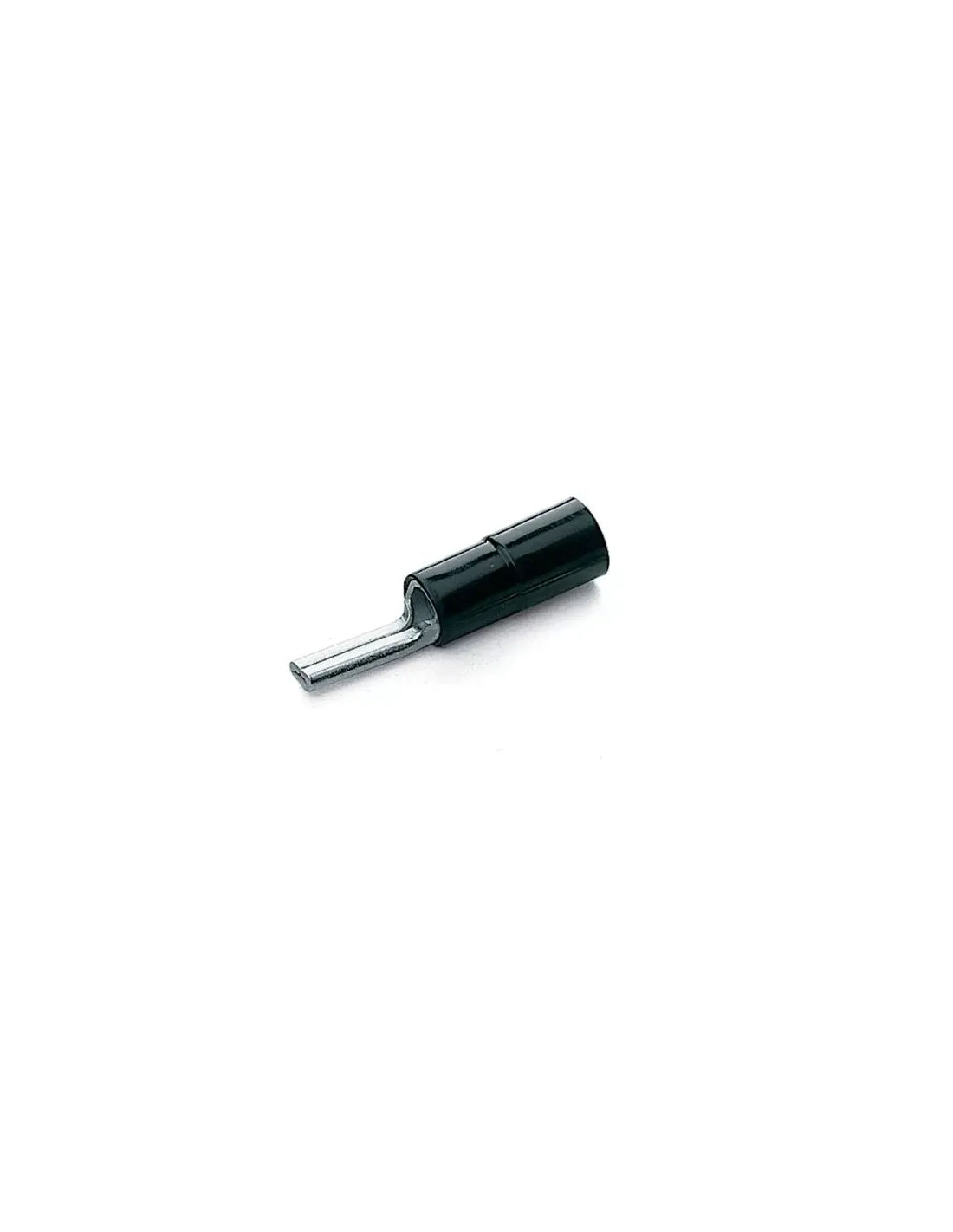

Cembre ane2-p12 insulated terminal with pin, section 10mmq p 12

The ANE-P series cable lugs are designed to make the connection to equipment equipped with a flat connection with a mobile plate safer and more reliable. They are made from electrolytic copper tape Cu-ETP CWOO4A according to UNI EN 13599, brazed in silver alloy, annealed and protected on the surface by electrolytic tin plating, min thickness 3µm. The insulating coating in PA 6 6 simplifies the installation and restoration of the cable insulation; furthermore, internally it is shaped in a funnel shape to ensure easy and complete insertion of the conductor into the collar of the cable lug. These cable lugs can also be used on rigid cables if compressed with the radial containment matrices of the MN RF-C series.
