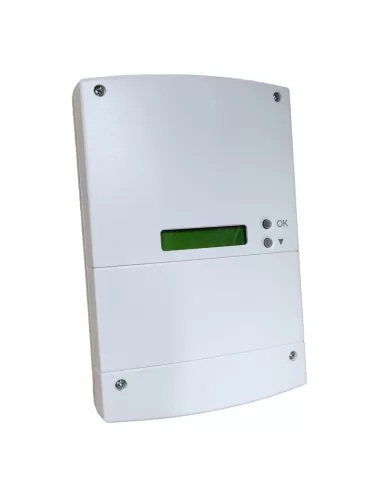

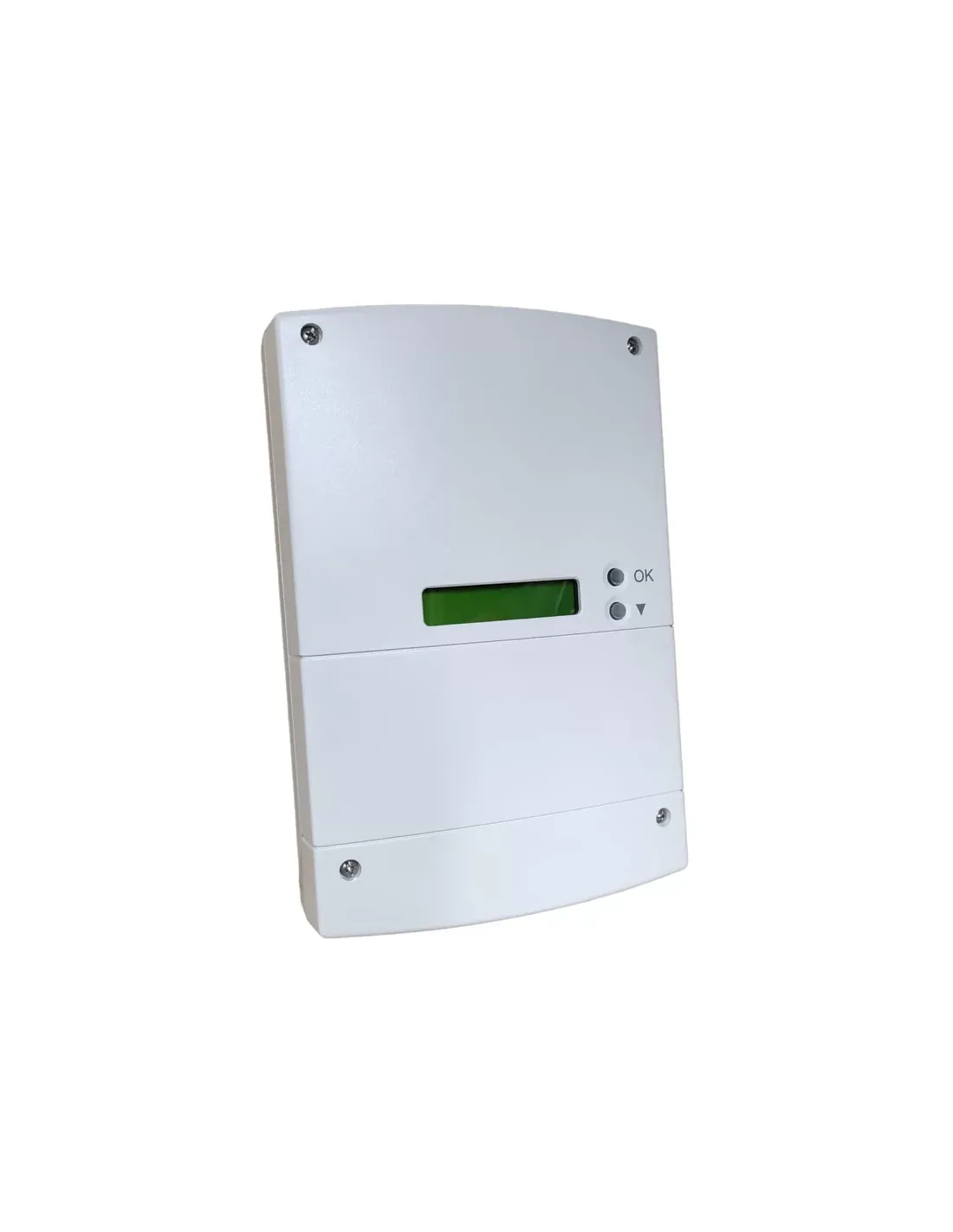

Logisty s785-22x wired radio gateway 32 devices 8 zones

The S785-22X interface receiver allows you to create a wireless extension in wired intrusion detection systems, acting as an interface between the wired alarm control panel and radio detection and/or control peripherals of the Logisty Expert line. The interface receiver is equipped with eight outputs for the repetition of zone alarms (from 1 to 8), an output for the tamper alarm, an output for the fault/anomaly status, an input and an output for the command and verification of the status (armed/disarmed) of the wired control panel. The receiver can manage: - up to 32 detection peripherals (sensors), which can be associated with any of the 8 available zones, - up to 4 control devices (keypads and remote controls), for the arming/disarming of the wired control panel. The interface receiver is self-protected against opening and removal, in compliance with CEI 79-2 standards. The product has not been designed for automation and/or home automation applications, however its versatility allows it to also create functions auxiliaries of this type The device is compatible exclusively with the control panels of the Logisty EXPERT line Backlit LCD display; · 2 lines of 16 characters: 1st line: menu display; 2nd line: sub-menu display TECHNICAL CHARACTERISTICS · Identification and supervision of: 32 detection peripherals (sensors) divided into 8 zones max 4 control devices (keyboards and remote controls) (see note 1) · Power supply 13.8Vdc (from 9.5 to 15 Vdc – see note 2) · Consumption: 100mA at rest – 200mA max with (LCD backlighting active); · 8 relay outputs for the repetition of zone alarms (zone 1÷8) · 1 relay output for the arming/disarming command of the wired control panel (see note 1); · 1 input for checking the armed/disarmed status of the wired control panel; · 1 relay output for the repetition of tamper alarms; · 1 relay output for fault/anomaly repetition; · 1 LED for power supply status and fault indication; · User interface with alphanumeric LCD (2 lines of 16 characters), 2 function buttons and 1 internal buzzer; · Radio-receiver module: compatible with all the devices in the Logisty Expert line · Consultation menu for installer/user; · Guided programming menu for the installer; · Test mode with attenuated reception sensitivity (-10dB) for a strict functional check; · Plastic container with wall fixing support and self-protection against opening/removal · Enclosure protection rating: IP31 and IK40 (indoor use); · Compliance with CEI 79-16, CEI 79-2 standards · Dimensions and weight: 160 x 240 x 65 mm – 750 g · Packaging dimensions: 330 x 185 x 75 mm · Ambient operating temperature: from -10°C to 55°
